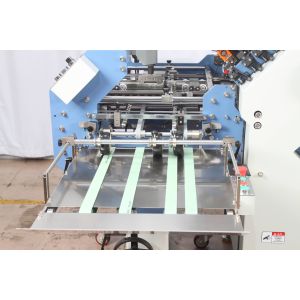

Cross Fold Knife Folder Machine Automatic With 6 Buckle Plate

Name: Cross Fold Knife Folder Machine Automatic With 6 Buckle Plate
Brand: AOQI
Price: 1 USD

Brand Name : AOQI

Model Number : 480T-6K+1D

Certification : CE Certification

Place of Origin : Dongguan City,China

MOQ : 1 set

Price : Negotiated

Payment Terms : T/T

Supply Ability : 700 pcs per year

Delivery Time : 7-15 days

Packaging Details : Export wooden box

Product name : Cross Fold Paper Folding Machine

Model : 480T-6K+1D

Condition : New

Packing : wooden case

Max paper feed size : 480*1000mm

Min paper feed size : 50*105mm

Max speed of folding roller : 180m/min

Power : 380V,3.3KW

Machine weight : 692.5KG

Dimensions : 2900*1600*1450mm

Warranty : 18 months

Contact Now

Cross Fold Paper Folding Machine 6 Buckle Plate With Knife Folding Machines

480T-6K+1D Cross Fold Paper Folding Machine can be used for small format paper with different thickness . It can acheive different folding type like half fold , Z-fold, double parallel-fold and 1 cross fold for the final fold .

Product parameter

Max paper feed size	480*1000mm
Min paper feed size	50*105mm
Paper thickness range	30-250g
Max speed	180m/min
Input power	380V
Total power	3.3KW
Machine weight	692.5KG
Machine dimensions	290016001450mm

Feature

1.Electrically Controlled Knife Of Photoelectric Integration Realizes High Speed, Superior Reliability And Minor Paper Wastage

2.Designing The Angle Of The Transitional , That Efficacious In Preventing The Paper Wrinkled

3.Indentation, Punching , Slitting

4.Sensitive Automatic Control Device Of Double Sheet And Jammed Sheet.man-machine Interface Facilitates Parameter Input

5.Electrical System Controlled By Plc.Smoothly Controlled By Vvve With Overload Protecting Function

6.Nonskid,wear Proof ,anti-rust Steel-pu Folding Roller With Screw Stripe,so That Thecontact Area Is Increased By 75%in Contacting With The Paper

7.Feeding System Adopts Three Holes Sucked Rotor

8.Adopt Germany Imported Electric Appliances Of Schneider
